Mobile Payment Solutions

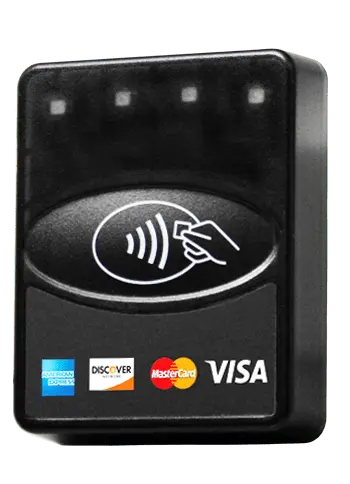

Kiosk III
The ViVOpay Kiosk III is a robust, secure stand-alone contactless reader comprised of a compact controller module and an RFID antenna module. This design approach allows the controller module to be easily installed within minimal footprint and effort for unattended Kiosks, ATM’s or other self service applications. The Kiosk III is certified with all major contactless payment programs such as MasterCard® MCL, AMEX® ExpressPay, Visa® VCPS and Discover® DPAS. Apple Pay, Google Pay, Samsung Pay, Apple VAS and Google
SmartTap 2.1 are also supported
Interfaces
RS232, USB
Operating Temperatures
-25C to 70C (-13F to 158F)
Storage Temperatures
-40C to 85C (-40F to 185F)
Dimensions
2.96 in (75.1mm) x 2.36 in (60mm) x 0.69 in (17.62 mm)

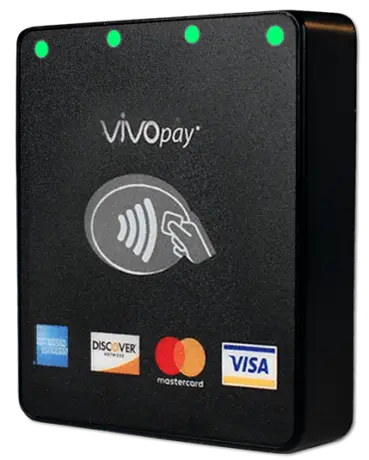

Kiosk IV
The ViVOpay Kiosk IV is a compact, single-piece NFC contactless solution certified with the latest contactless brand specifications and mobile wallet technologies. By supporting AMEX ExpressPay, Visa VCPS, MasterCard MCL, and Discover DPAS, along with Apple Pay, Samsung Pay, Google Pay, Apple VAS, and Google SmartTap 2.1, every transaction is covered no matter what you tap! With a wide temperature range, the rugged Kiosk IV is ideal for all environments.
Interfaces
USB, RS232
Operating Temperatures
-25C to 70 °C (-13F to 158 °F)
Storage Temperatures
-40 to 85 °C (-40 to 185 °F)
Dimensions
64mm(L) x 53mm(W) x 13.5mm(D)

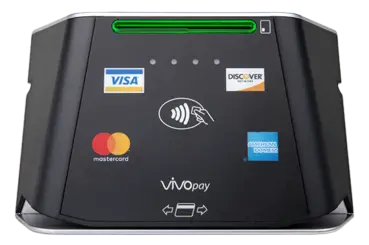

The VP8300 from ID TECH is a secure EMV chip, magnetic stripe reader with contactless capabilities. The VP8300 is an attractively packaged customer-facing countertop payment solution providing the merchant with the ability to accept all payment types including loyalty programs. The VP8300 is the perfect solution for merchants that need to support the latest payment capabilities without the additional overhead, complexities and cost of a full PINPad payment device.
VP3600
The VP3600 is a compact mobile PIN Pad and card reader designed to allow magnetic stripe (MSR), EMV (ICC chip card), and EMV contactless transactions (via NFC technology). The device’s small form factor and Bluetooth interface make it ideal for mobile applications where magnetic stripe and/or smart card reading are required. As a mobile reader, VP3600 has the ability to work with Android, iOS, and Windows phones and tablets.
Interfaces
Bluetooth 4.0 BLE, USB – HID
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperatures
-20°C to 70°C (-4°F to 158°F)
Dimensions
4.58 inches (116.3 mm) x 2.76 inches (70 mm) x 0.75 inches (19 mm)
UniPay 1.5 Specs
ID TECH’s UniPay 1.5 is one of the latest addition to the audio jack family of mobile card readers. The UniPay 1.5 incorporates a chip card slot for contact EMV card reading and along with reliable magnetic stripe decoding, this device proves to be a versatile compact mobile reader. Its small form factor and audio jack interface is ideal for most tablet and mobile phone applications.
Interfaces
Audio headphone jack/USB-HID
Storage Temperatures
-22°F to 158°F (-30°C to 70°C)
Operating Temperatures
32°F to 131°F (0°C to 55°C)
Dimensions
2.36 inches (60 mm) x .63 inches (16 mm) x 2.25 inches (57.2 mm)
Shuttle
The ID TECH Shuttle is a magnetic stripe reader that easily communicates with mobile devices via the headphone jack. Use your mobile device to read a variety of magnetic stripes – including credit cards, signature debit cards, gift cards, and loyalty cards. The Shuttle utilizes ID TECH’s proven Magstripe reading technology, providing bidirectional card reading of up to two tracks of information.
Interface
Audio headphone jack
Operating Temperatures
32°F to 131°F (0°C to 55°C) non-condensing
Storage Temperatures
-22°F to 158°F (-30°C to 70°C) non-condensing
Dimensions
1.77 in (45 mm) X 5 in (127 mm) X 1.42 in (36 mm)
VP3300
ID TECH’s VP3300 represents the latest innovation in secure payment acceptance. It incorporates triple-tracks MagStripe, smart card, and contactless technologies. This all-in-one reader enables the acceptance of MagStripe, EMV smart card, and NFC/ contactless payments including Google Pay, Apple Pay, Samsung Pay, Interac, MasterCard MCL, Visa VCPS, American Express ExpressPay, Discover DPAS, and more.
Power
5V USB powered
Operating Temperatures
0°C to 55°C (32°F to 131°F)
Storage Temperatures
-20°C to 60°C (-4°F to 140°F)
Dimensions
2.52 inches (64 mm) x 1.93 inches (49 mm) x 0.57 inches (14.5 mm)

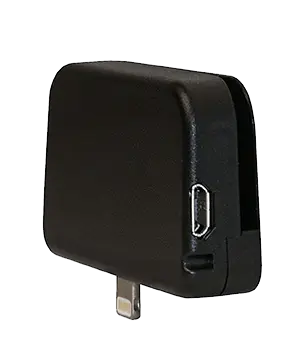

iMag Pro II Specs
The ID TECH iMag Pro II is a magnetic stripe reader for all Apple Lightning connector devices: iPhones and iPads. Use your mobile device to read a variety of magnetic stripes including credit cards, signature debit cards, gift cards, loyalty cards, driver licenses, and ID badges. The iMag Pro II utilizes ID TECH’s proven MagStripe reading technology, providing bi-directional card reading of up to three tracks of information.
Interface
1 mA during swipe, 12 mA when idle
Storage Temperatures
-22°F to 158°F (-30°C to 70°C) non-condensing
Operating Temperatures
32°F to 131°F (0°C to 55°C) non-condensing
Dimensions
2.32 inches (59mm) x 0.52 inches (13mm) x 1.28 inches (32.6mm)
